Snap

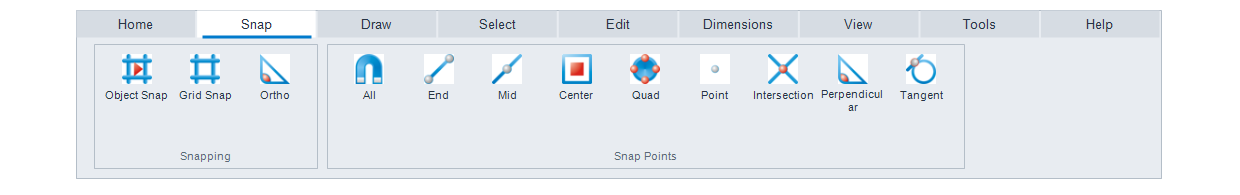

Use the Snap tab to place points accurately while drawing and editing.

Object Snap

Enables snapping to the selected geometric snap-point modes on nearby objects.

Grid Snap

Restricts picked points to the configured grid spacing.

Ortho

Constrains supported point input horizontally or vertically from the previous point.

All

Enables all available object snap-point modes.

End

Snaps to the endpoint of a curve or segment.

Mid

Snaps to the midpoint of a curve or segment.

Center

Snaps to the centre of a circle, arc or ellipse.

Quad

Snaps to quadrant points on circles, arcs and ellipses.

Point

Snaps to point objects in the drawing.

Intersection

Snaps where two supported objects intersect.

Perpendicular

Snaps to a point that makes the current segment perpendicular to another object.

Tangent

Snaps to a tangent point on a circle or arc.
