Edit

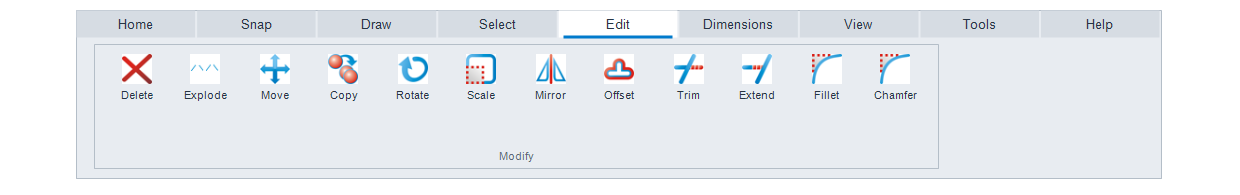

Use the Edit tab to modify selected geometry. Commands that request points or objects can be cancelled with Esc.

Delete

Removes the selected objects from the drawing. Shortcut: Delete.

Explode

Separates supported compound objects into their component objects.

Move

Moves selected objects by the displacement between a base point and destination point.

Copy

Creates displaced copies of selected objects while leaving the originals in place.

Rotate

Rotates selected objects around a chosen base point.

Scale

Enlarges or reduces selected objects around a chosen base point.

Mirror

Creates a reflected copy of selected geometry about a two-point axis.

Offset

Creates a parallel or concentric copy at the specified distance and side.

Trim

Cuts a supported object at a selected boundary.

Extend

Lengthens a supported object until it meets a selected boundary.

Fillet

Joins two supported objects with a tangent arc using the chosen radius.

Chamfer

Joins or trims two supported objects with a straight bevel using the chosen distance.
