Dimensions

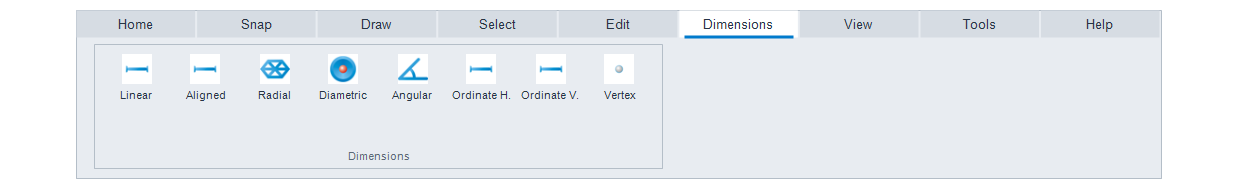

Use the Dimensions tab to add measurement and coordinate annotations.

Linear

Adds a horizontal or vertical distance dimension between two definition points.

Aligned

Adds a distance dimension aligned with the direction between two definition points.

Radial

Adds a radius dimension to a selected circle or arc.

Diametric

Adds a diameter dimension to a selected circle or arc.

Angular

Adds an angle dimension for supported lines or arcs.

Ordinate H.

Adds a horizontal ordinate coordinate dimension at the chosen point.

Ordinate V.

Adds a vertical ordinate coordinate dimension at the chosen point.

Vertex

Starts a repeated coordinate-annotation command; it is not a visibility toggle. Pick vertices to place X/Y coordinate labels and finish with Esc or right-click.
